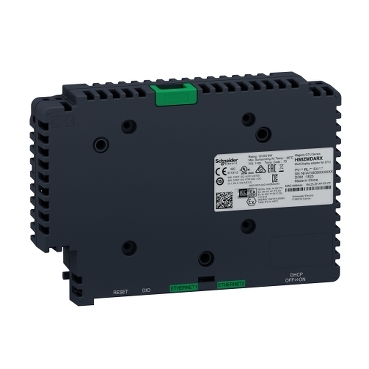

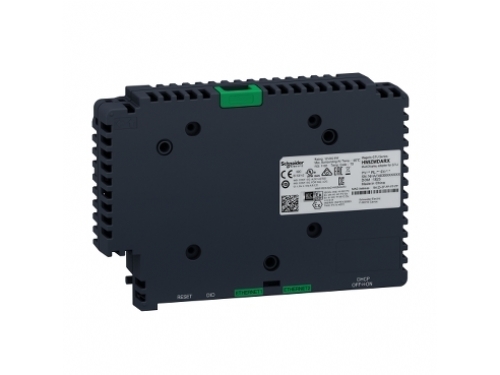

HMIZMDARX Çoklu görüntü adaptörü

Stok KoduHMIZMDARX
Yeni
Ürün
İndirimli
Ürün
Kdv Hariç 22.473,76  + KDV
Kdv Dahil 26.968,52  56.184,41
Stokta var
Bu üründen Adet
Ürün Açıklaması

Specifications

Main

Range of product

Harmony GTU

accessory / separate part type

Adaptor

accessory / separate part category

Adaptation accessory

Product compatibility

Harmony GTU open
Harmony iPC industrial PCs
Complementary

Accessory / separate part destination

Harmony GTU display

[Us] rated supply voltage

12 V DC module supply

Input voltage

12 V DC module supply
24 V DC

Integrated connection type

1 DIO terminal block 3 inputs + 1 output
2 Ethernet TCP/IP RJ45 jack

Output voltage

24 V

Output voltage type

DC

Output current

50 mA

Power consumption in W

8 W

Net weight

1.8 lb(US) (0.8 kg)

Local signalling

LED green, steady operating status (RUN)
LED green, faded stand-by
LED green/orange, alternate program mode
LED orange, flashing establishing communication connection
LED red, steady power ON
LED green, orange and red, alternate ERROR (fault)

Type of cooling

Natural

Height

5.2 in (131 mm)

Depth

1.4 in (35 mm)

Width

7.4 in (188 mm)
Environment

Pollution degree

2

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient air temperature for storage

-4…140 °F (-20…60 °C)

Operating altitude

2000 m

product certifications

UL 508
CSA C22-2 No 142
CSA C22-2 No 213
cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01
IEC-Ex
ATEX zone 2/22
EAC
UKCA
UKEX

Relative humidity

10…90 % non-condensing

Vibration resistance

3.5 mm constant amplitude 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2
9.8 m/s² constant acceleration 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2

Shock resistance

147 m/s²X, Y, Z directions for 3 times EN/IEC 61131-2

Resistance to fast transients

1 kV IEC 61000-4-4 signal ports)
2 kV IEC 61000-4-4 power ports)

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

Environmental characteristic

Corrosive gas free
Dustproof
